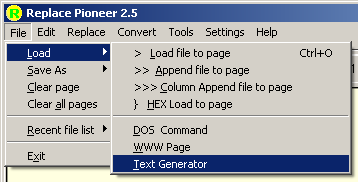

File Menu containing "Load" and "Save As", which can be open from "File" menu:

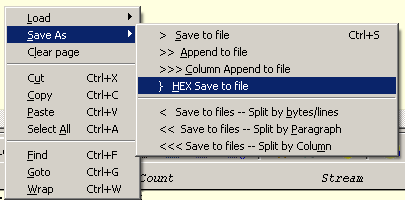

or "popup menu" in edit window:







File ToolBar:







1. File Load(Main Menu/Popup Menu/Toolbar):



> Load file to page --> will load file and overwrite all text in current active page



>> Append file to page --> will append the file to the bottom of the page



>>> Columon Append file to page --> will append the file to the right of the page

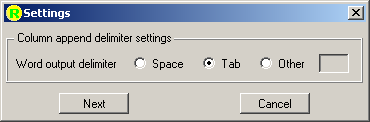

User can set "output file delimiter" here as column delimiter:







} HEX Load to page --> file will be open and convert to HEX text format





To learn more about write mode, see Write Mode(Overwrite,Append,Column Append)

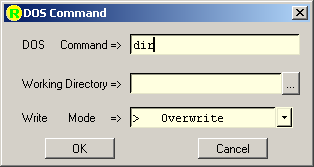

Dos Command output --> user enter a dos command, the output will be written to the page, user can select working directory and write mode here.





Note 1: No output will put to the page if DOS commands fail.



Note 2: If user want to input more commands in one line, user should join the commands with '&'.



WWW Page --> user enter a web link, the content of web will be written to the page, user can select type and write mode.





There are 3 types to select:



text: show web page as pure text



html: show web page with html format text



links: show all links list of the web page



User can also set proxy url, username and password, and timeout for reading web page in "Settings" dialog.

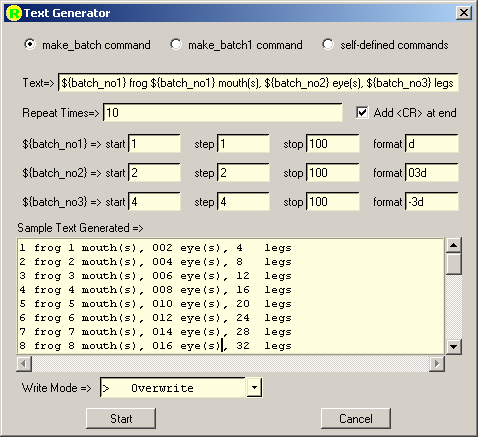

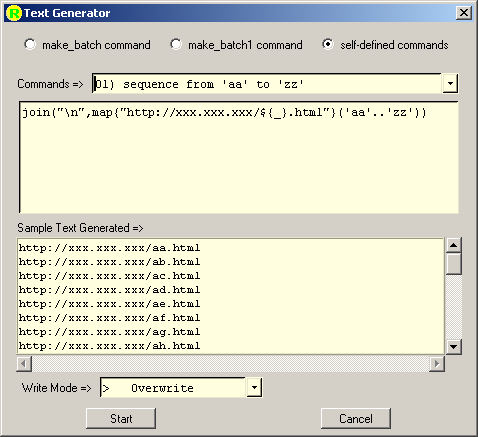

Text Generator --> user can generate lines of text by make_batch, make_batch1 function, or self defined function and statement.





By changing "Text=>" entry, Repeat Times, and ${batch_no*} rules, user can get lines of text with desired format and sequence no.







By writing self-defined string expressions under "Commands" entry, user can get desired output text.



User can also select pre-defined "Commands" from list, and make slight change to fit requirement.





Please refer to Functions part for detail about make_batch and make_batch1 functions.





2. File Save As(Main Menu/Popup Menu/Toolbar):



> Overwrite file --> will save current page and overwrite the file



>> Append to file --> will append current page to the bottom of the file



>>> Column Append to file --> Will append current page to the right of the file



User can set "output file delimiter" here as column delimiter:







} HEX Save to file --> will convert HEX text to byte and save to file





< Save to files -- Split by bytes/chars/lines/files--> Will split current page to number of bytes/chars/lines/files. The number and bytes/chars/lines/files switches can be set at Settings->Settings menu.

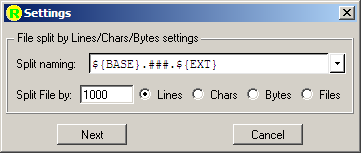

User can set "split naming" rule and number of "bytes/chars/lines/files" here:





<< Save to files -- Split by Paragraph--> Will split current page into many paragraphs, and save each paragraph into a file

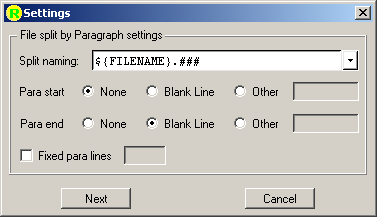

User can set "split naming" rule and paragraph delimiter here:





<<< Save to files -- Split by Column--> Will split current page into many columns, and save each column into a file

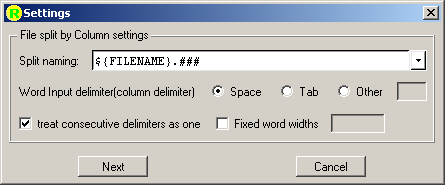

User can set "split naming" rule and column delimiter here:







For detail about file spliting, refer to Spliting output text into multi-files(Horizontal and Vertical).





3. Clear Page/Clear All Pages(Main Menu/Popup Menu/Toolbar):



Clear Page will clear current active page



Clear all pages will clear all pages



Notes 1: Please save your text manually before clearing, this operation can not "Undo".



Notes 2: For large amount of text, "Clear Page" is much more efficient than "Select All" and "Delete".



4. Recent File List:



By default, system will keep the maximum 10 recently opened file name(manually or automatcially opened).



By clicking "File->Recent File List->Settings" menu, user can enable/disable Recent File List generating, as well as clearing existing Recent File List







5. Exit:



Quit system, and save current system settings.



By default, system will pop up a dialogue for confirmation on quit.



User can check option of "Disable quit prompt" on quit dialogue to avoid this window appear next time.





User can enable it again at Help->Quick Start Guide menu.
